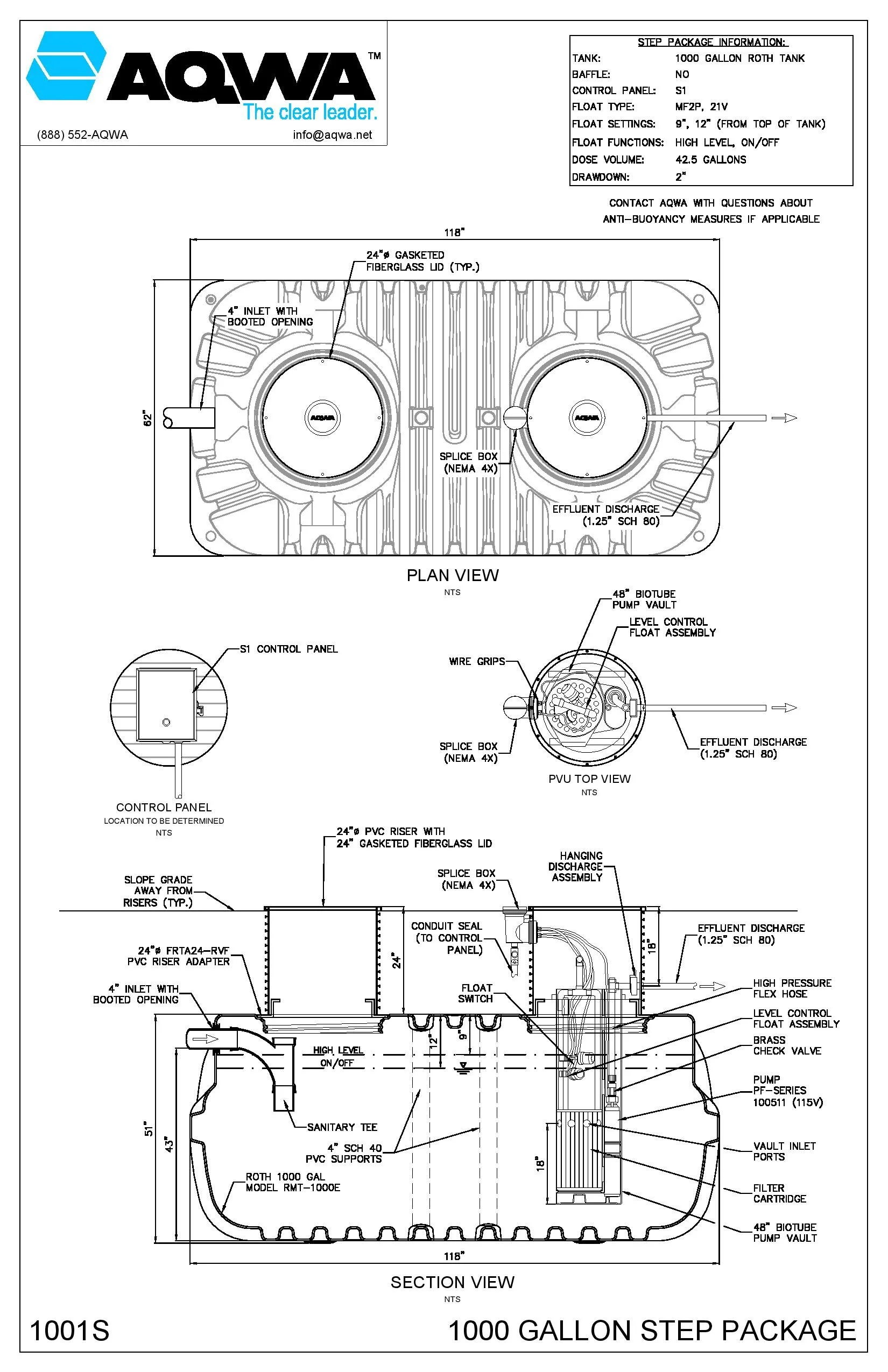

AQWASTEP is a pre-assembled, ready to install private lift station that enables homeowners, developers and municipalities to easily connect your home or business to a nearby gravity or pressure collection sewer line.

AQWASTEP’s control panel is pre-wired and comes with 50 feet of flex conduit to allow for mounting the control panel. All that is left to do is for the electrician to supply two electrical circuits to the bottom of the circuit breakers. (1) 120v 10-amp breaker for the control circuit and (1) 120v 20-amp breaker for the pump circuit.

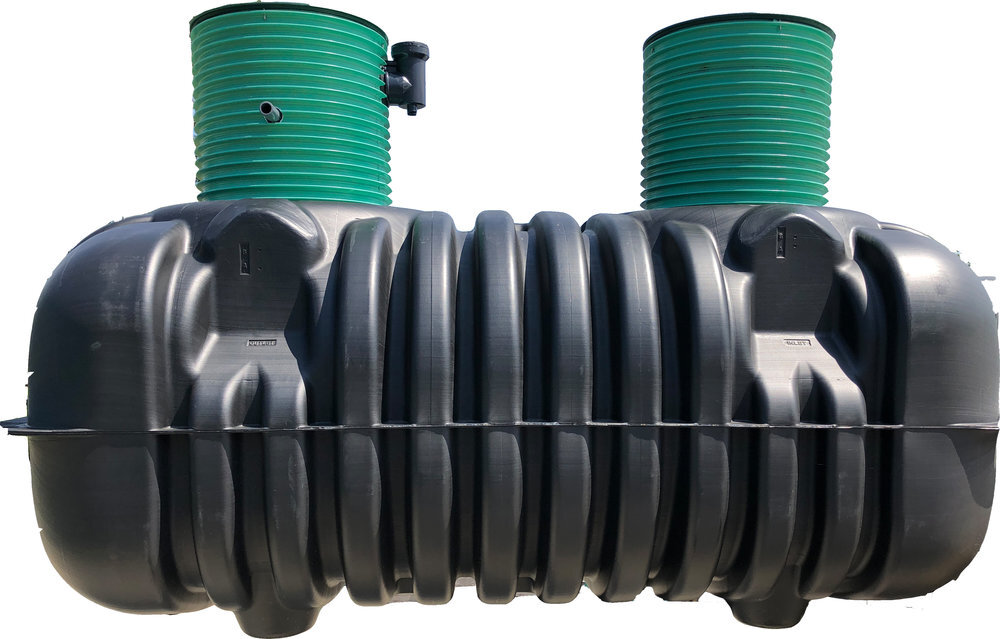

The tank is a single piece of blow-molded plastic. The tank and riser connections are guaranteed to be watertight.

• Industry leading warranty

  • Tank: lifetime

  • Pump: 10 years

  • Control panel: 5 years

  • Biotube: lifetime

• Factory pre-assembled

• 1000/1500 gallon seamless watertight ROTH tank

• Orenco stainless steel turbine effluent pumps

• Orenco control panel (telemetry enabled upgrade available)

• Hanging discharge assembly allows for tool-free pump removal

• Biotube pump vault with pre-set float switches

• Fiberglass lids attached with stainless steel screws

• Wiring pulled into splice box, pre-labeled for easy hookup

• 4” rubber boot for inlet

• 1.25” SCH80 discharge

• External NEMA 4x splice box

• Ultra-rib riser

• Duplex model also available
